• 60-40 Folding Split-Bench Front Facing FlexFold Flip Forward Cushion/Seatback Rear Seat
• Analog Appearance
• Driver Information Center
• Fade-To-Off Interior Lighting
• Fixed Antenna
• Front And Rear Map Lights
• Front Cupholder
• Full Cloth Headliner

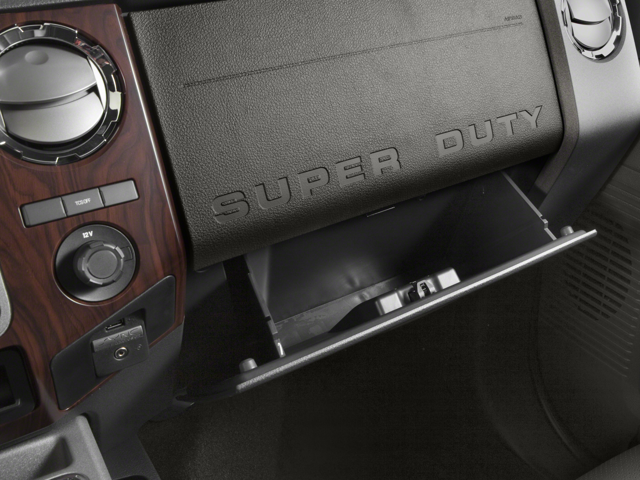

• Glove Box

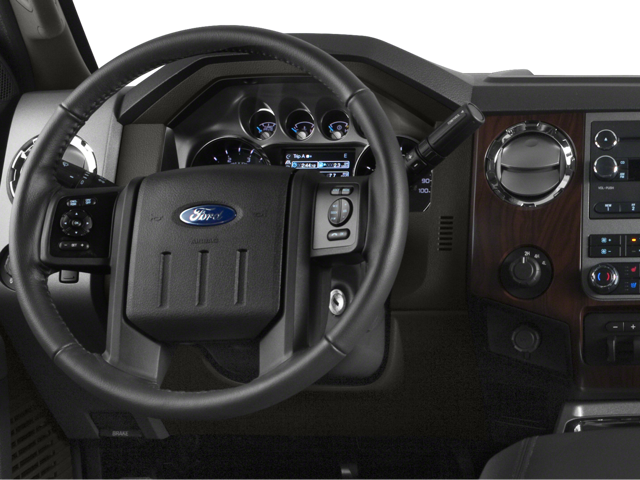

• Manual Tilt/Telescoping Steering Column
• Outside Temp Gauge
• Securilock Anti-Theft Ignition (pats) Immobilizer
• Urethane Gear Shifter Material

• 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist and Hill Hold Control
• 50-State Emissions System
• 78-Amp/Hr 750CCA Maintenance-Free Battery w/Run Down Protection
• Class V Towing Equipment -inc: Hitch, Brake Controller and Trailer Sway Control
• Dual Rear Wheels
• Firm Suspension
• Front And Rear Anti-Roll Bars
• Front Suspension w/Coil Springs
• GVWR: 14,000 lb Payload Package
• HD Gas-Pressurized Shock Absorbers
• Hydraulic Power-Assist Steering
• Limited Slip w/4.30 Axle Ratio
• Part-Time Four-Wheel Drive
• Single Stainless Steel Exhaust
• Solid Axle Rear Suspension w/Leaf Springs
• Trailer Wiring Harness

• Curtain 1st And 2nd Row Airbags
• Driveline Traction Control
• Dual Stage Driver And Passenger Front Airbags
• Dual Stage Driver And Passenger Seat-Mounted Side Airbags
• Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute
• Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point and Height Adjusters
• Rear Child Safety Locks
• Side Impact Beams

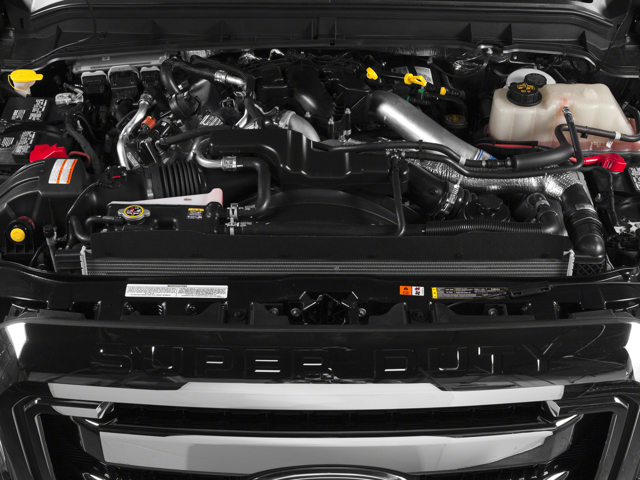

ENGINE: 6.7L POWER STROKE V8 TURBO DIESEL B20

• 4 valve OHV
• manual push-button engine-exhaust braking (STD)

• Turbocharged
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Power Steering
• Dual Rear Wheels
• ABS
• 4-Wheel Disc Brakes
• Brake Assist
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Tow Hooks
• Intermittent Wipers
• Variable Speed Intermittent Wipers

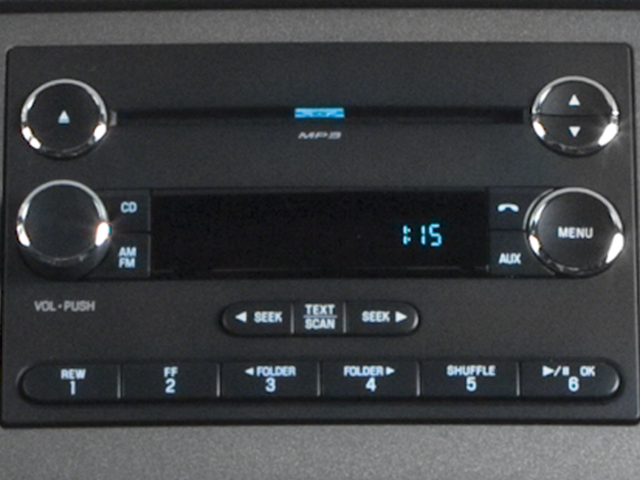

• AM/FM Stereo
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• A/C
• Passenger Vanity Mirror
• Immobilizer
• Traction Control
• Front Side Air Bag
• Driver Air Bag
• Passenger Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Driver Restriction Features
• Child Safety Locks

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 157
• Weight Information
• Base Curb Weight (lbs): 8611
• Gross Axle Wt Rating - Front (lbs): 5940
• Gross Axle Wt Rating - Rear (lbs): 9100
• Curb Weight - Front (lbs): 4859
• Curb Weight - Rear (lbs): 3752
• Gross Vehicle Weight Rating Cap (lbs): 14000
• Gross Combined Wt Rating (lbs): 40000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 19000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1900
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 19000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4750
• Maximum Trailering Capacity (lbs): 19000
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 5940
• Spring Capacity - Rear (lbs): 9000
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 9650
• Axle Ratio (:1) - Front: 4.30
• Axle Ratio (:1) - Rear: 4.30
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3
• Rear Brake Rotor Diam x Thickness (in): 14.3

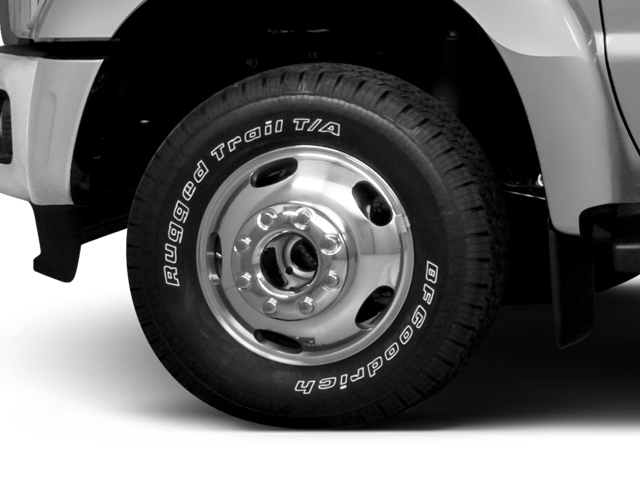

• Tires
• Front Tire Order Code: TFB
• Rear Tire Order Code: TFB
• Front Tire Size: LT225/70SR19.5
• Rear Tire Size: LT225/70SR19.5
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 7500
• Rear Tire Capacity (lbs): 15000
• Revolutions/Mile @ 45 mph - Front: 647
• Revolutions/Mile @ 45 mph - Rear: 647
• Wheels
• Front Wheel Size (in): 19.5 X 6
• Rear Wheel Size (in): 19.5 X 6
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Forged Aluminum
• Rear Wheel Material: Forged Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 50.4
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 37.5
• Exterior Dimensions
• Wheelbase (in): 172
• Length, Overall (in): 263
• Width, Max w/o mirrors (in): 96
• Height, Overall (in): 79.7
• Overhang, Front (in): 38.1
• Cab to Axle (in): 56.4
• Ground to Top of Load Floor (in): 35.4
• Ground Clearance, Front (in): 8
• Ground Clearance, Rear (in): 8

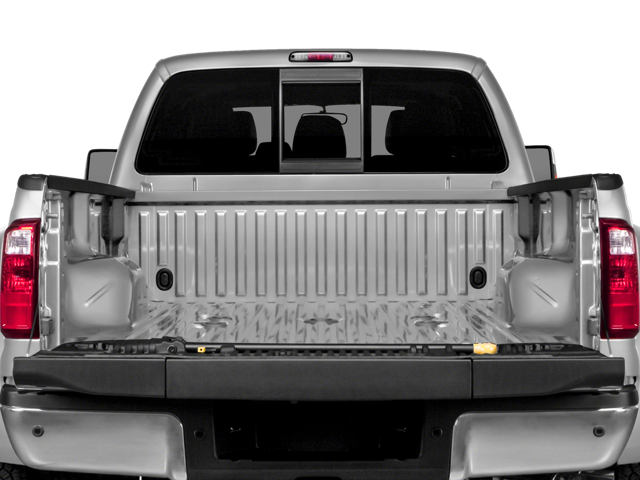

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98
• Cargo Box Width @ Top, Rear (in): 69.3
• Cargo Box Width @ Floor (in): 69.3
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 77.3
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68
• Front Hip Room (in): 67.6
• Second Head Room (in): 40.8
• Second Leg Room (in): 42.1
• Second Shoulder Room (in): 68
• Second Hip Room (in): 67.6
• Summary

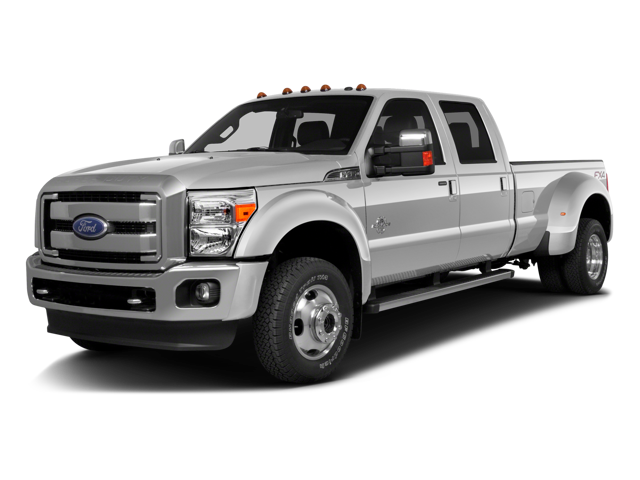

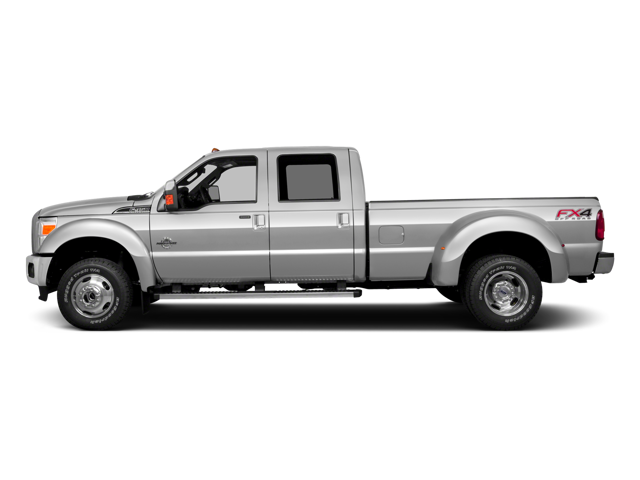

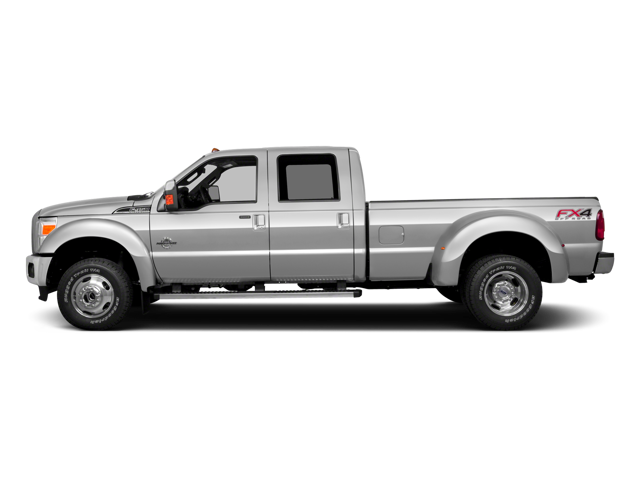

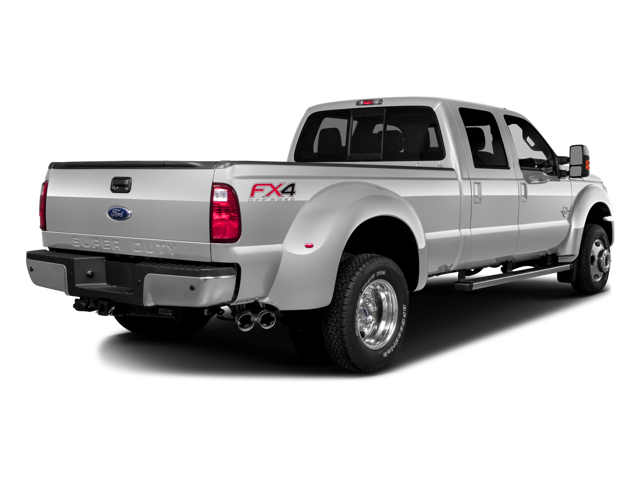

• Vehicle Name: Ford Super Duty F-450 DRW
• Body Style: SD Crew Cab
• Body Code: T
